Atlas 50cm Basin & Semi Pedestal

About the Atlas 50cm Basin

This wall-mounted white basin, made from high-grade Vitreous China, measures 50cm in width, 17.5cm in height, and 41cm in depth. It weighs 9.5kg and comes pre-punched with either one or two tap holes for added convenience.

Whether you’re aiming for a minimalist aesthetic or a more traditional look, the Atlas 50cm Basin is a reliable choice.

Architects, view the Revit drawing

CAD Drawing

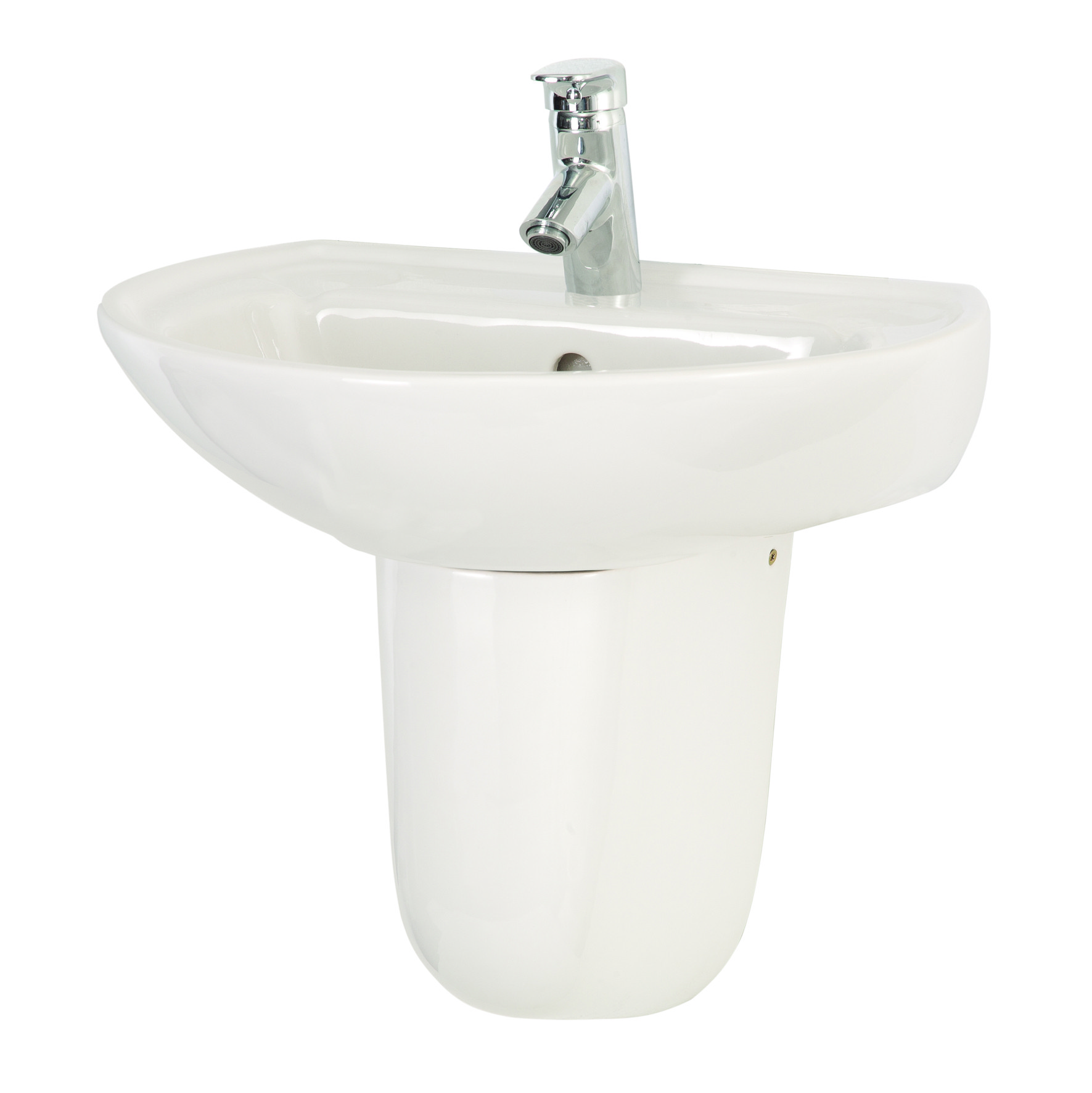

About the Semi Pedestal

The Semi Pedestal that accompanies the Atlas 50cm Basin weighs 7.5kg and is 23.5cm high. This pedestal not only supports the basin, but also discreetly conceals the plumbing to offer a clean and polished finish.

Its compact size makes it ideal for bathrooms where space is at a premium, without sacrificing the elegance of the overall design.

Architects, view the CAD drawing

CAD Drawing

How to Install the 50cm Basin and Semi Pedestal

This guide aims to help plumbers achieve a secure and elegant setup. The installation process is designed to be as simple as possible, so you can provide your clients with a premium product with minimal hassle.

The tools you need:

• Measuring tape.
• Pencil.
• Drill.
• Silicon/adhesive material.
• Screwdriver.
• Wrench.
• Spirit level.

The tools you need for installation:

• Basin fixing kits (plastic fischer plug, screws, and bolts).
• Rubber washer.
• Basin drain cover components.

How to install the basin drain cover

1. Apply silicon lining at the top waste.
2. From the top view, place the rubber washer at the top waste, where the silicon is applied and insert it into the top water hole.
3. From the bottom view, insert the rubber washer and bottom basin waste into the bottom water hole.
4. Apply silicon lining to the bottom water hole for sealing.
5. Insert basin cover into the top water hole when needed.

How to install the basin

1. Measure the distance between the basin’s two fixing holes (from centre to centre) “X”.
2. Use a spirit level to mark the X dimension on the wall. Ensure the water line is centred so the basin can be installed perfectly parallel to the floor.
3. Fix the screws to your marked dimension “x”, then lift the basin and attach it to the screws through fixing holes (ensure the spirit level is on top of the basin).
4. Secure the screws to the bolts from the inside.
5. Use the wrench to tighten the bolt onto the screw on each side.
6. Apply a silicon lining along the edge of the basin facing the wall.

How to install the Full Pedestal

1. Position the pedestal under the basin’s centre, pushing it towards the wall and adjusting as needed.
2. Place a spirit level on top of the basin and mark fixing holes on the floor with a pencil.
3. Drill 8mm holes at the marked points using a drill.
4. I nsert the plastic fisher plug into the drilled holes.
5. Insert the screws into the fischer plug and tighten with a screwdriver.
6. Apply silicon lining along the pedestal’s edge facing the floor.

How to install the Semi Pedestal

1. Position the pedestal under the basin’s centre, pushing it towards the wall. Adjust it as needed. Mark the fixing holes on the wall with a pencil.
2. Mark the positions for attaching the brackets on the wall with a pencil.
3. Drill 10mm holes at the marked fixing points.
4. Use a wrench to secure the fischer plugs, screws, and bolts into drilled holes.
5. Attach the pedestal into the secured brackets.
6. Use a screwdriver to fasten the pedestal with screws and apply silicon lining along the pedestal’s edge facing the wall.

Download the complete installation guide

Installation Instructions

Why Choose Lecico

• Premium Quality at an Affordable Price
• Resistant to Scratches and Germs
• Always Available Stock
• Effortless to Clean
• 20-Year Warranty on Ceramic Products
• Classic, Timeless Designs

Frequently Asked Questions about the 50cm Basin and Semi Pedestal

What is the meaning of a pedestal basin?

A pedestal basin is a type of sink that sits on top of a pedestal, supporting the sink and hiding the plumbing underneath.

What are the pros and cons of a pedestal basin?

Pedestal basins offer a stylish, space-saving solution perfect for smaller bathrooms. They’re easy to install and create a clean, classic look. On the downside, they don’t offer much in the way of storage or countertop space, which might be a dealbreaker for some.

What is the difference between a basin and a sink?

A basin generally describes a washbowl in a bathroom, while a sink is a broader term that can apply to basins in kitchens, utility areas, or bathrooms.

Is a pedestal sink a good idea?

A pedestal sink is a great option if you’re looking to save space and add a touch of elegance to your bathroom. It’s particularly useful in smaller bathrooms or where storage isn’t a top priority.

How much does the 50cm Basin and Semi Pedestal cost?

Pricing will vary depending on the stockist. We encourage you to find your closest stockist here, and contact them for specific prices.

Wait, There’s More: Explore Quality Pedestals and Basins

Browse the beauty and quality of Lecico’s latest offerings with our Furniture Range, featuring a stunning selection of cabinets and basins designed to fit any style. Whether you prefer wall-hung or floor-standing options, there’s something to bring your client’s bathroom dreams to life.

Our comprehensive Basins Range includes everything from wall-hung and pedestal basins to under-mount, drop-in, and countertop designs. For those working on specific projects, be sure to visit our exclusive Architects’ Choice Range of Basins.

Discover the full furniture range

Shop all basins today

We’re Just a WhatsApp Away

We’re on WhatsApp, and we would love to hear from you! Please don’t hesitate to contact our Lecico team so we can assist you in your bathroom projects.

Chat with us on WhatsApp
